HP / Compaq série XR
Compaq and later HP XR series UPS (T1000 XR, T1500 XR, T2200 XR, R1500 XR, R3000 XR, R5500 XR, R12000 XR) and related models (T700, R3000, R5500): line-interactive towers and racks with ERM runtime modules. Very old but still running in many racks.

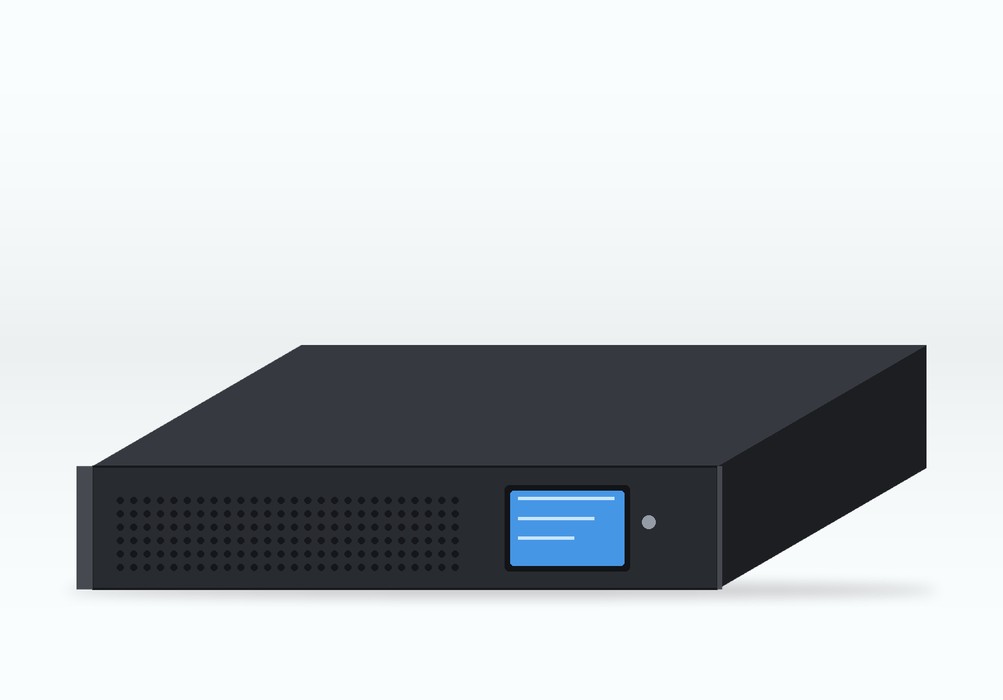

HP / Compaq série XR UPS
What are they used for?
Line-interactive technology adds an automatic voltage regulator (AVR): voltage dips and surges are corrected without drawing on the battery, which preserves runtime and battery life. It is the right compromise for demanding workstations, small servers, network racks and CCTV.
Key features of the range
- Technology: Line interactive
- Waveform on battery: Sine wave
- Form factor: Tower, 19" rack
- LCD status display
- Network / SNMP card slot
- Runtime extendable with ERM module
- Automatic voltage regulation (AVR)
Models in the range
| Model | HP P/N | Power | Internal batteries | HP spare battery |
|---|---|---|---|---|
| HP T700 | 204015-B31 | 700 VA / 500 W | please ask us | – |
| HP T1000 XR | 204155-B31 | 1 000 VA / 700 W | 2 x 12 V 7 Ah | – |
| HP T1500 XR | 204155-B32 | 1 500 VA / 1 050 W | 4 x 12 V 7 Ah | – |
| HP T2200 XR | 204451-B31 | 2 200 VA / 1 600 W | 4 x 12 V 12 Ah | 240796-001 |
| HP R1500 XR | 204404-B31 | 1 500 VA / 1 340 W | 4 x 12 V 7 Ah | 240789-001 |
| HP R3000 XR | 192186-B31 | 3 000 VA / 2 700 W | 10 x 12 V 5 Ah | 204503-001 / 407407-001 |
| HP R3000 | AF414A | 3 000 VA / 2 700 W | 10 x 12 V 5 Ah | 407407-001 |
| HP R5500 XR | 326529-B31 | 6 000 VA / 5 400 W | 20 x 12 V 5 Ah | 407419-001 |
| HP R5500 | AF416A | 6 000 VA / 5 400 W | 20 x 12 V 5 Ah | 407419-001 |
| HP R12000 XR | 207552-B22 | 12 000 VA | please ask us | 228288-001 |
Model no longer sold by HP: listed to help you identify your UPS and find its replacement battery kit.
Choosing the right UPS
- Add up the power in watts (W) of the equipment to protect and keep a margin of about 30%: the UPS should not run permanently above 70 to 80% of its rating.
- Check the number and type of outlets (IEC C13, C19, Schuko, terminal block) against your equipment's power cords.
- For longer runtime, choose a model with extendable runtime or an ER version to connect to battery cabinets.
- For automatic and clean shutdown of your servers, use the USB/RS232 port or a network card in the communication slot.
Replacement batteries
UPS batteries wear out even when there are few power cuts: they should be replaced on average every 3 to 5 years. You will find the replacement battery kits for this range in the « HP UPS batteries » section, sorted by generation and with the HP spare battery part number.
