Onduleur On-Line Eaton 9PX 1500 RT 2U Netpack 9PX1500IRTN

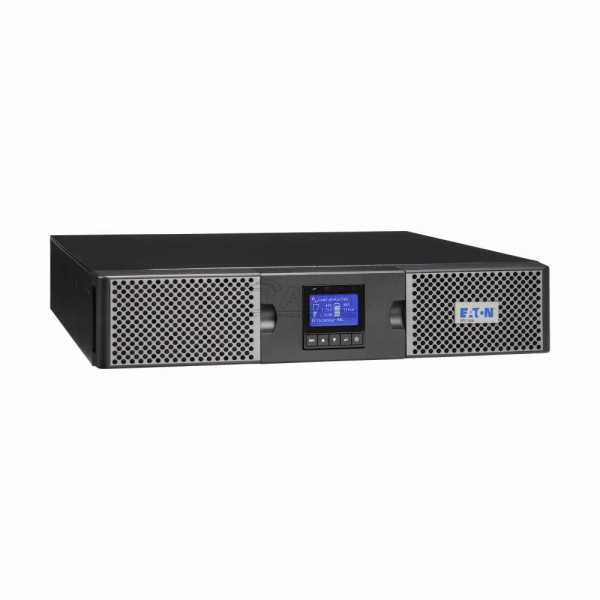

Eaton 9PX 1500 RT 2U Netpack 9PX1500IRTN

Name: Eaton 9PX 1500 RT 2U Netpack 9PX1500IRTN
Brand: Onduleur.shop
SKU: 9PX1500IRTN
Price: 1712.90 EUR
Availability: InStock

I agree to the Terms of Use and Privacy Policy View more details

Is your UPS a different model? Send us a photo
We identify your UPS and offer you the right battery kit.

Performance and efficiency

The 9PX UPS is the first in its class to deliver a unity power factor (VA=W). It thus provides 11% more power than any other UPS and can power a greater number of servers.
Energy Star certified, the 9PX delivers maximum energy efficiency, for minimal electricity and cooling costs.
With on-line double conversion topology, the 9PX UPS continuously monitors power supply conditions and regulates voltage and frequency.
With a convertible Tower or Rack installation format, the 9PX is the most compact solution: just 2U format.

Flexibility of use

The unique graphical LCD screen clearly displays the UPS status and power data. The unit also lends itself to advanced configuration.
It can measure power consumption down to the level of the output groups and allows kWh values to be monitored via its display or the Eaton Intelligent Power® software.
Load segment control (on the output sockets) ensures that non-essential equipment is shut down first, maximising the runtime of critical devices.
The 9PX features serial and USB connectors, as well as a slot for a communication card (optional, except on the Netpack model, where it is included automatically). The Eaton Intelligent Power® software provides seamless integration with the most widely used virtualisation environments and cloud management tools.

Availability and flexibility

The 9PX 1000 & 1500 are available in RT2U format (optimised for rack installation).
Each model is supplied with feet and a rack mounting kit.
The internal bypass ensures service continuity in the event of a unit failure. We also offer an external maintenance bypass (standard on the HotSwap version) that makes replacing the UPS easier.
Extended battery life: the Eaton ABM® battery management system is based on a three-stage charging technique that extends battery life by almost 50%.
For extended runtime, up to 4 hot-swappable battery modules can be added if necessary. The backup power supply will then operate for several hours.

Technology: ON-LINE Double conversion
Output Waveform: SineWave
Display: LCD screen
Input voltage: 230V Single phase
Output voltage: 230V single-phase
Warranty: 2 years

Ease of management
Network manageable	Provides remote power management of the UPS over the network via Powerchute Business Edition.
Compatible with InfraStruXure Manager	Enables centralized management via APC's InfraStruXure Manager.
SmartSlot	Customize the capabilities of your UPS with management cards.
LED status indicators	Gives a quick view of the power and unit status through visual indicators.
Serial connectivity	Allows the UPS to be managed via a serial port.
Availability
Scalable runtime	Allows the runtime to be increased quickly when needed.
Automatic internal bypass	Supplies mains power to the connected loads in the event of an overload or a UPS failure.
Hot-swappable batteries	Ensures continuity and quality of the power supply to the protected equipment while the batteries are being replaced.
Intelligent battery management	Maximizes battery performance, lifetime and reliability through an intelligent, precision charging process.
Temperature-compensated battery charging	Extends battery life by regulating the charge voltage according to the actual temperature of the batteries.
Automatic restart of loads after UPS shutdown	Automatically restarts the connected equipment when mains power is restored.
Protection
Power conditioning	Protects the connected loads against surges, spikes, lightning and other electrical disturbances.
Input power factor correction	Minimizes installation costs by allowing the use of smaller generators and cables.
Frequency and voltage regulation	Increases application availability by correcting abnormal frequencies and voltages without drawing on the battery.
Cold start capability	Provides temporary battery power in the event of a mains failure.
Generator compatible	Ensures a stable, constant supply of current to protect your equipment when a generator is used.
Safety agency approved	Ensures the product has been tested and approved as able to operate safely with the connected loads and within the environment.
Resettable circuit breaker	Easy recovery after a surge; no need to replace a fuse.
Ease of maintenance
Predictive failure notification	Provides an early-warning failure analysis function that allows components to be replaced proactively.
User-replaceable batteries	Increases availability by allowing a trained user to upgrade and replace the batteries, thereby reducing repair times.
Disconnected battery notification	Warns when a battery is not available to provide backup power.
Audible alarms	Reports changes in mains power and UPS conditions.
Automatic self-test	The battery self-test is performed periodically to ensure early detection of the need to replace a battery.
Adaptability
Flash-upgradable firmware	Firmware maintenance releases can be installed remotely via FTP.
Rack/Tower convertible	Protects the initial investment in the UPS when migrating from a tower environment to a rack environment.
Plug-and-Play external batteries	Ensures a stable, constant supply of current to the loads while the UPS runtime is being increased.
